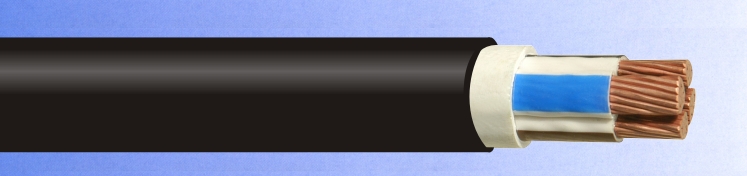

PVC INSULATED POWER CABLES ,

: 545-584

+ 375







0,66; 1 50 .

APPLICATION
The cables are designed for power transmission and distribution in stationary equipment for nominal voltage 0,66;  1 kV, frequency 50 Hz.


 –
 –
 -
-

STRUCTURE
Core – copper or aluminium single or multiwire, sector or round shaped
Insulation – PVC plasticate
Sheath -  PVC plasticate


,                                       0,66 1
, °                          -50 +50
, , :
1,5-16 2                                            450
25-70 2                                             300
95-240 2                                           200

,                                    7,5

SPECIFICATIONS
Operating voltage, kV                                                0,66 or 1
Operating temperature, °                                      -50 to +50
Face-to-face length, m, at least:
cross section 1,5-16 mm2                                              450
cross section 25-70 mm2                                               300
cross section 95-240 mm2                                             200
Minimal bending radius at laying,
cable diameters, at least                                                 7,5

    16-705.499-2010

The cables meet the requirements of national standard GOST 16442-80

3.7
